50 years in Representing Quality Manufacturers

Mist Collection

Air filtration technology for industrial production processes including: mist collection, dust collection, wet separation, and filter element and components for energy and safety optimization.

AERO and AERO-S

  • Separation of emulsion and oil mist
  • No need for secondary filter
  • Sized for individual machine to centralized system
  • Main filter stage flushing
  • Optional pump-back station, HEPA stage, integrated spray nozzle
  • High efficiency Micos filter cartridges
  • 500 to 12,500 cfm

ENA Series

  • Separation of coolant or emulsion mist
  • Sized to one machine or plant-wide
  • Demister filter cleanable and self-draining
  • Floor, machine-top mounted, or cellular units
  • Specialty solutions
  • 4050-20,000 cfm

eLine

  • Electrostatic liquid, adhesive aerosol and smoke separator
  • Integrated spray cleaning
  • Clean air recirculation
  • Typically for die-casting and forging operations

Applications:

  • Machining
  • Additive Manufacturing
  • Grinding
  • Polishing
  • Deburring
  • Die-Casting
  • Milling

Dust Collection

Air filtration technology for industrial production processes including: mist collection, dust collection, wet separation, and filter element and components for energy and safety optimization.

VARIO

  • KLR filter element for service life up to 20,000 hr.
  • With cartridge or filter plates for dry or semi-oily emissions
  • Options for air-flow balancing, spark/flame/explosion control
  • Automatic filter cleaning, emission collection, briquetting
  • Filter dosing, HEPA, indoor/outdoor installation
  • Specialty solutions
  • Paint overspray
  • Airflow: 500-16,000 cfm

L-CUT

  • All in one unit for thermal cutting applications: e.g. Laser/plasma cutting tables
  • Integrated spark arrestor
  • Airflow: 600-3,000 cfm

TR-1

  • Stand-alone systems for MQL
  • Approved indoor EX-protection
  • Airflow: 500-800 cfm

AmbiTower

  • Facility filter for collecting fume or dust without the need for ducting
  • Stand-alone, “plug and play” unit
  • Ideal for maintenance areas where grinding and/or welding operations are done
  • Modular design with easy maintenance

Applications:

  • Ceramics
  • Laser/Plasma Cutting
  • Compounding
  • Blasting Processes
  • Die-Casting
  • Graphite Dusts
  • Grinding/Polishing
  • Hot-dip Galvanizing
  • Nonmetallic Minerals
  • Plastics/Rubber Machining
  • Powder Coating
  • Spring Grinding
  • Thermal Spraying
  • Welding
  • Wet Painting
  • Wire-Drawing
  • Wood Products/Panels

Wet Separation

Air filtration technology for industrial production processes including: mist collection, dust collection, wet separation, and filter element and components for energy and safety optimization.

  • Designed to handle processes that other filtration units cannot
  • Used for the separation of substances that cannot be separated or are difficult to separate in dry operating systems
  • Sticky dust, adhesives, explosive dust, fumes
  • From plug-and-play for individual machines to completely customized solutions
  • Based on a centrifugal droplet separation technology
  • Sized to one or more machines
  • Dust can be contained in bucket or moved with sludge conveyor
  • Modular design provides adjustable component placement

Applications:

  • Blasting Processes
  • Compounding
  • Die-Casting
  • Forging
  • Hot-dip Galvanizing
  • Large Shredding
  • MDF Processing
  • Plastics Extrusion
  • Synthetic Fiber
  • Wood-based Panel
  • Metal deburring (Wheelabrator)

Venturi Wet Scrubber (VDN)

  • Ideal for combustible, explosive, humid, and adhesive dusts
  • The high-performance separator injects water into the airflow, combining with a Venturi to separate the water droplets from the airflow and discharging collected wetted dust (sludge) into the waste disposal bin
  • Used for separation of substances that cannot normally be separated by dry filtering systems

Applications:

  • Grinding, Polishing, where glowing embers or hot dust might collect
  • Combustible and explosive dust from abrasive blasting, grinding and polishing of aluminum and magnesium
  • Diemaking/diecutting
  • Moist and adhesive dust in foundries, glass and ceramic manufacturing
  • Press fumes from organic materials such as paper, particle board or wood

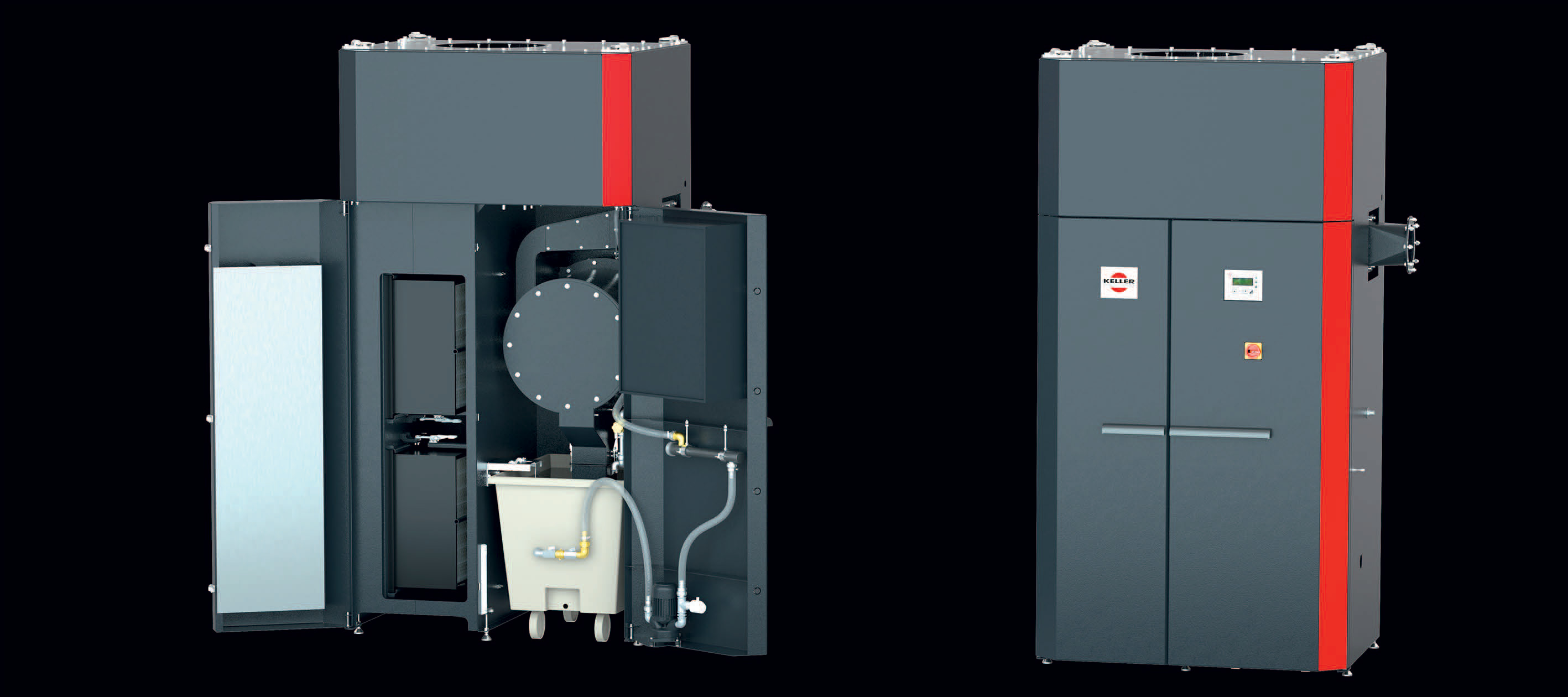

Hydron Plus-Compact Wet Separator

  • Suitable for explosive, combustible and adhesive risk applications
  • Designed for placement at the workstation with clean-air recirculation
  • Wet separation for complex or combustible processes
  • Reduced energy savings, outside venting is not needed
  • Recirculation of clean air with secondary dry filters

PRO COMPONENTS

Additional items that add to safety and energy conservation

  • ProFix: Airflow Energy Control: Automatic airflow damper, internal airflow balancing
  • ProFlow: Airflow Monitor, Horizontal or Vertical Installation
  • ProTERM: Heat Recovery System, improves cooling and heating
  • ProFlap: Explosion Back-Pressure flap, ATEX certified, NFPA69 compliant
  • ProBox: Solid state flame barrier, pre-separation of coolant/oil
  • ProChip: Chip Separator at machine tools, captures mist, not chips
  • ProPipe: Flameless explosion vent, approved for indoor use

CAPTURING ACCESSORIES

  • Extractor Arms: to grab fumes and dust at the source, sized to suit
  • Hoods/Plates: to capture fumes at source, sized to the application
  • Work Booths: standard sizes with noise reduction panels as needed
  • Downdraft tables, Heavy-duty work benches, sized to the need
  • Injector Nozzle, compresses air operated injects vacuum at dust collector

FILTER ELEMENTS

  • Many choices within pleated plate or cartridge types
  • KLR-Filter: Long Service Life, up to 20,000 operating hrs. > 99.9% separation efficiency
  • DRY-P: For dust applications, melt-blown or polyester pleats
  • FlEXI-P: For semi-oily applications, fiber or polyester pleats
  • MICOS-P: For coolant and oil mist, fine-fiber material
  • Correct choice ensures operational reliability and cost-effectiveness
